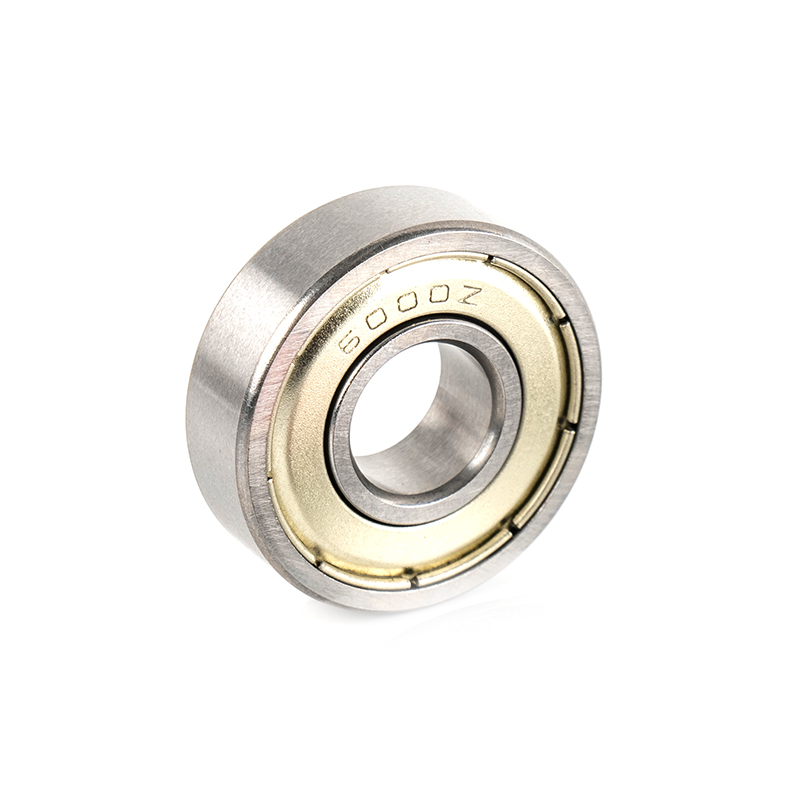

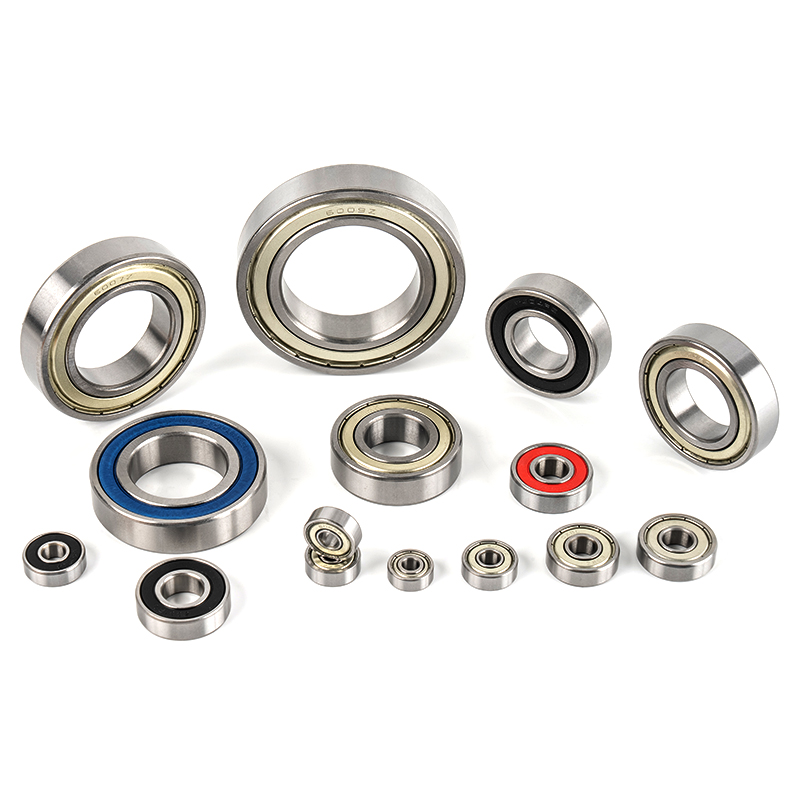

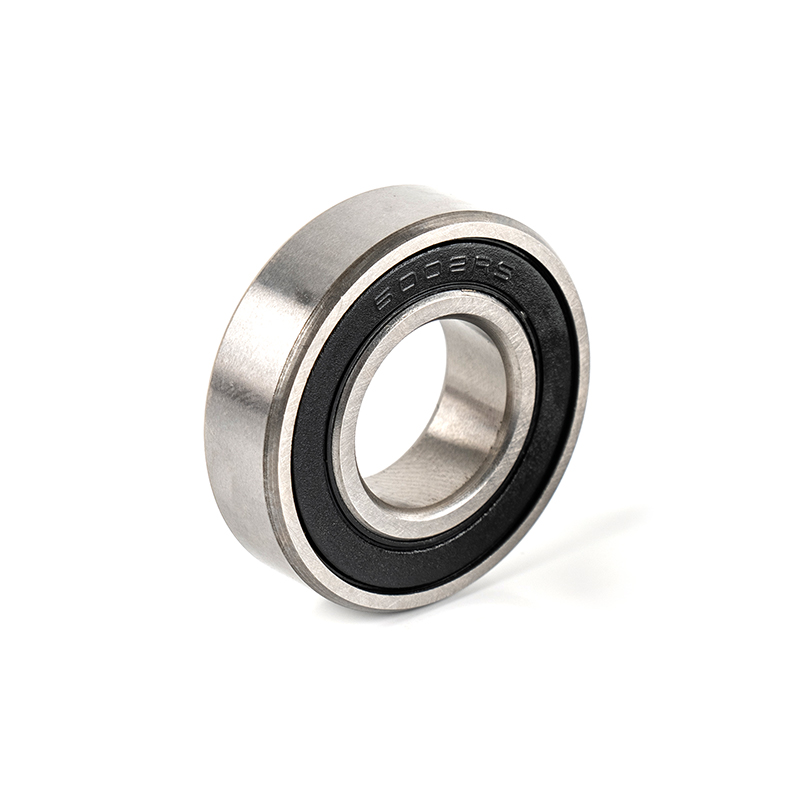

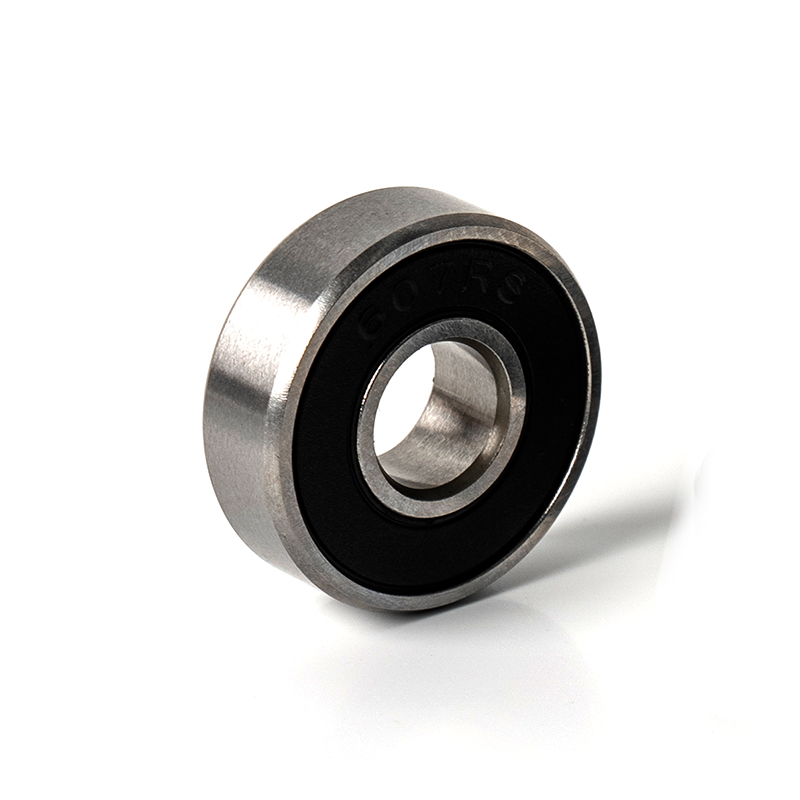

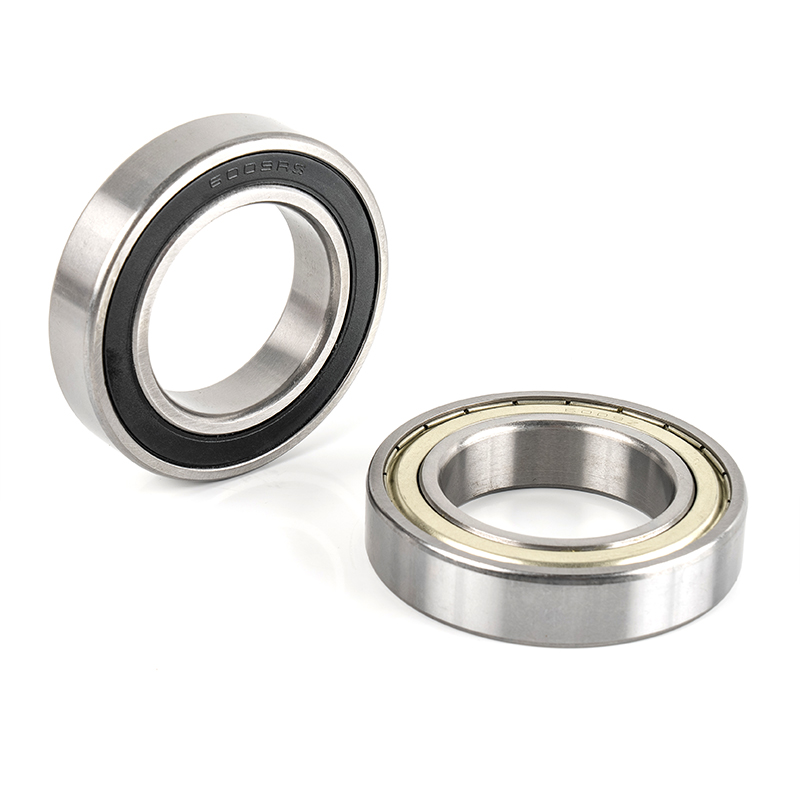

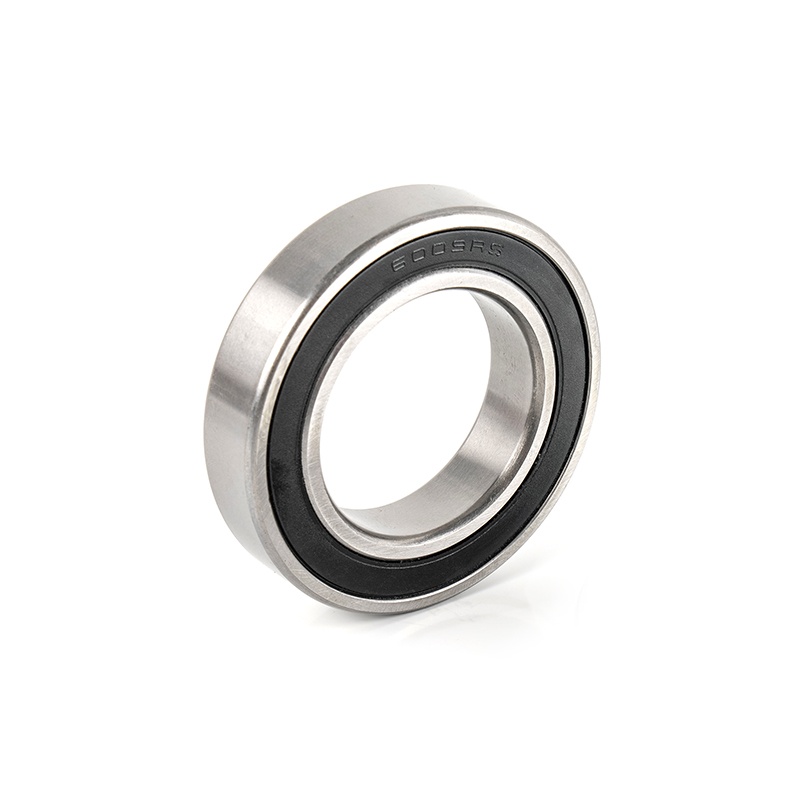

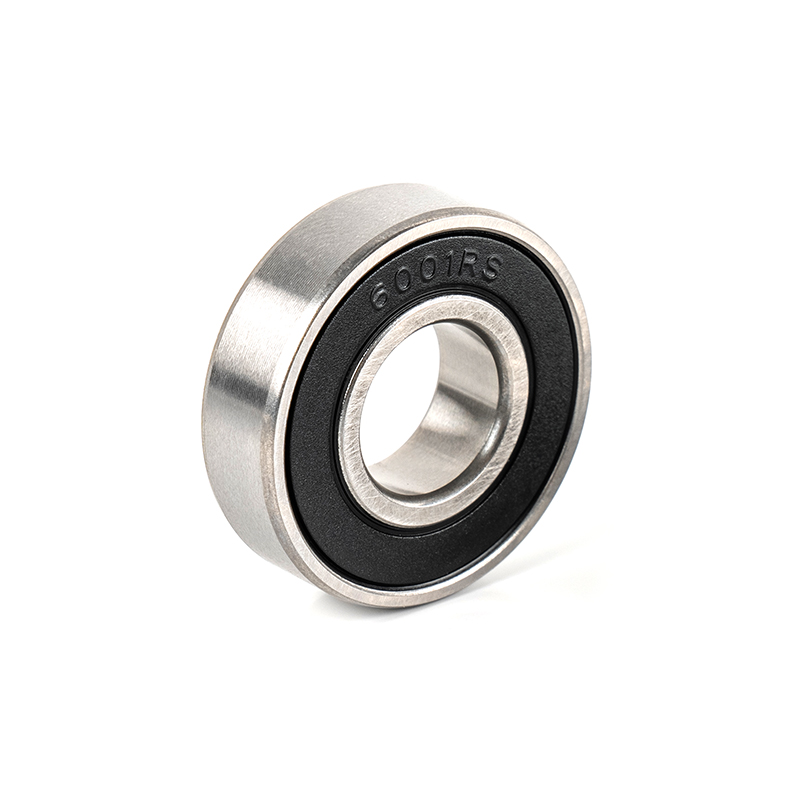

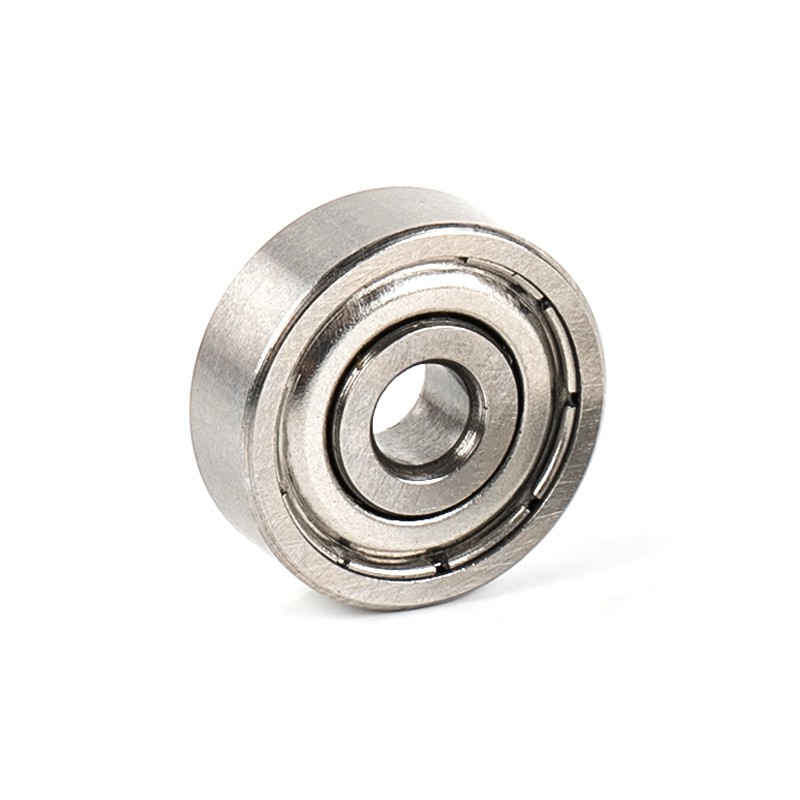

Deep groove ball bearing 60 series

Deep groove ball bearing 60 series

Deep groove ball bearings are representative rolling bearings with a wide range of applications. CXBL bearings have the characteristics of high speed, low noise, long service life, and beautiful appearance. They are used in industries such as low-noise motors, automobiles, motorcycles, and general machinery, and are widely used type of bearings in the mechanical industry.

inquiry

Deep groove ball bearing 60 series Manufacturers

Quality Assurance

The company strictly implements procedures such as screening and reviewing raw material suppliers, conducting incoming material testing, and comparing incoming materials; Production process design and program control make each batch of products more stable and traceable, achieving efficient production control; Strictly monitor the quality of each batch of products according to the supplier's indicators.

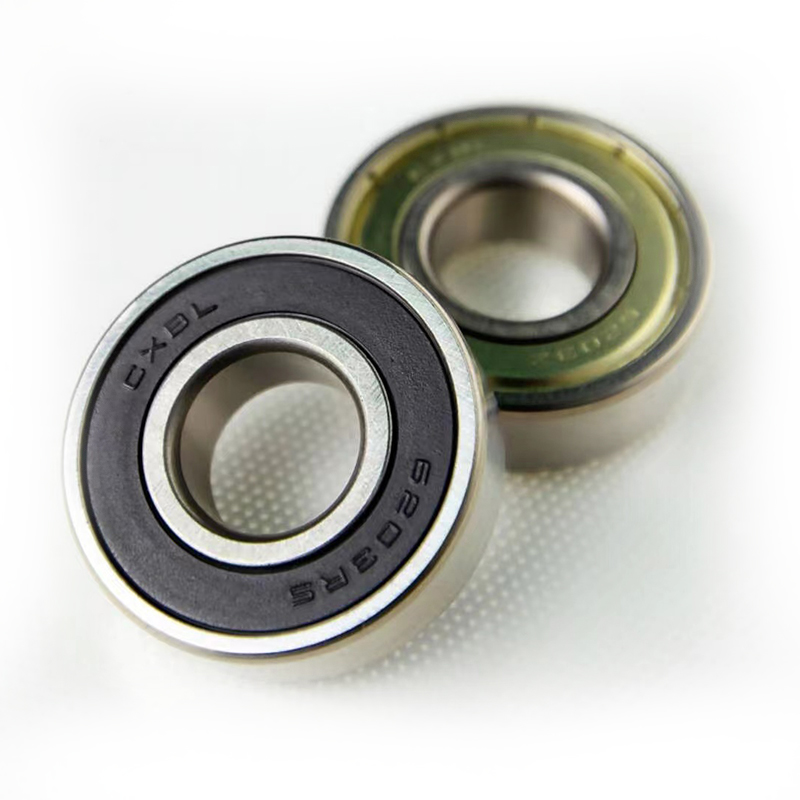

6203 RO Pump Special Bearing
Model specifications
Bearing
No		 Bore
d(mm)		 O.d
D(mm)		 Width
B(mm)		 Load Rating Weight
(kg)
Dynamic Static

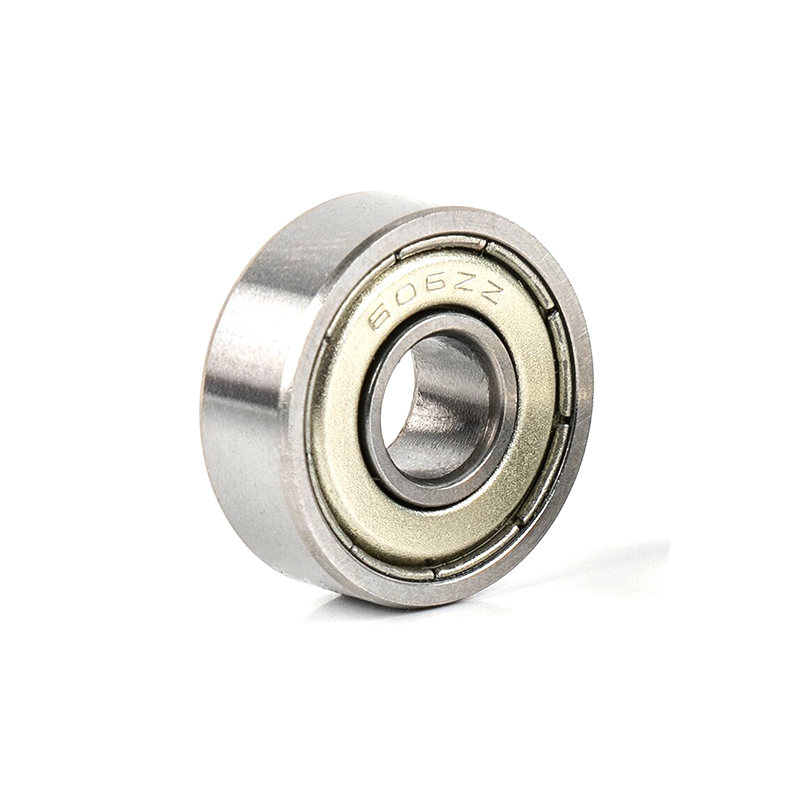

606 6 17 6 1.13 0.56 0.006
607 7 19 6 2.01 1.05 0.008

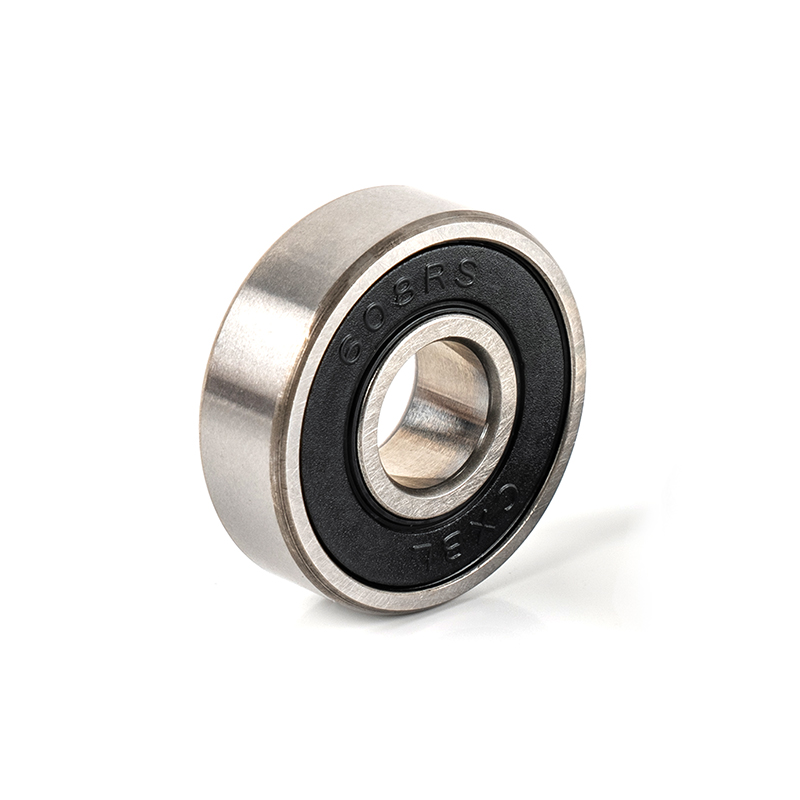

608 8 22 7 2.53 1.36 0.015

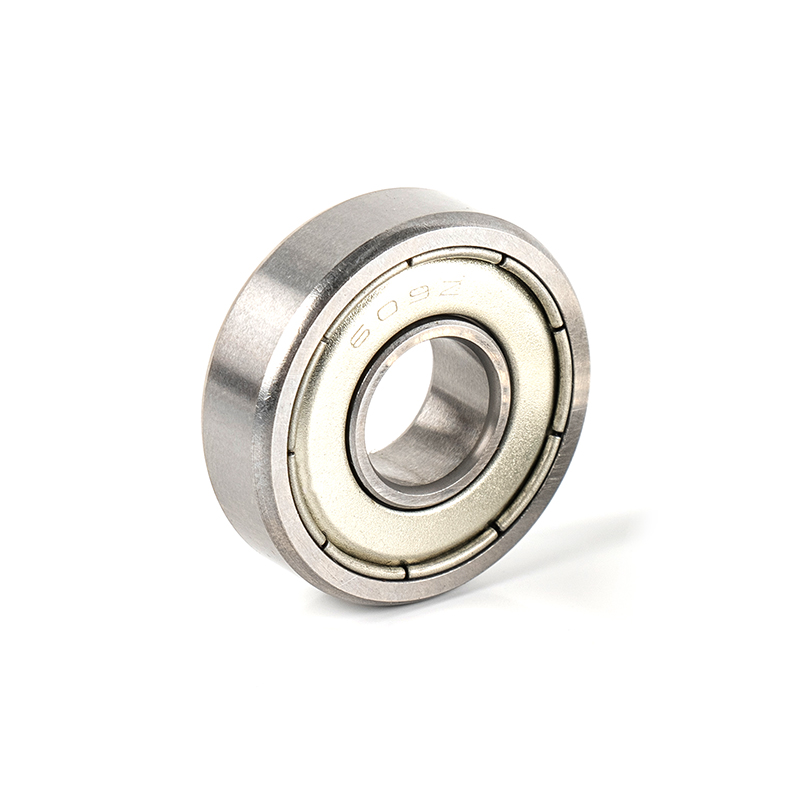

609 9 24 7 2.53 1.36 0.016
6000 10 26 8 3.52 1.95 0.019
6001 12 28 8 3.93 2.23 0.021
6002 15 32 9 4.30 2.51 0.030

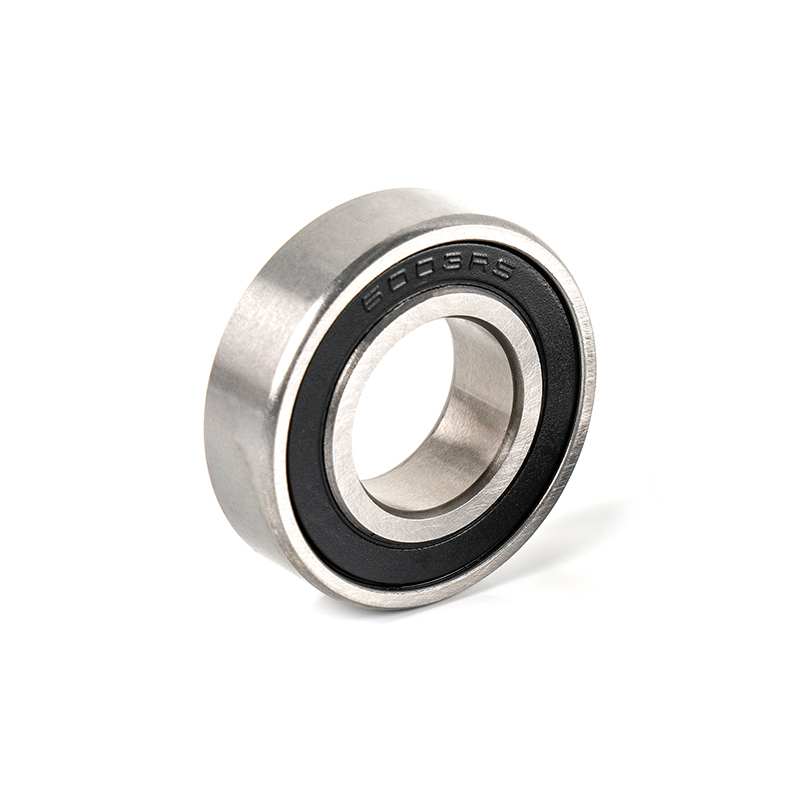

6003 17 35 10 4.62 2.79 0.040

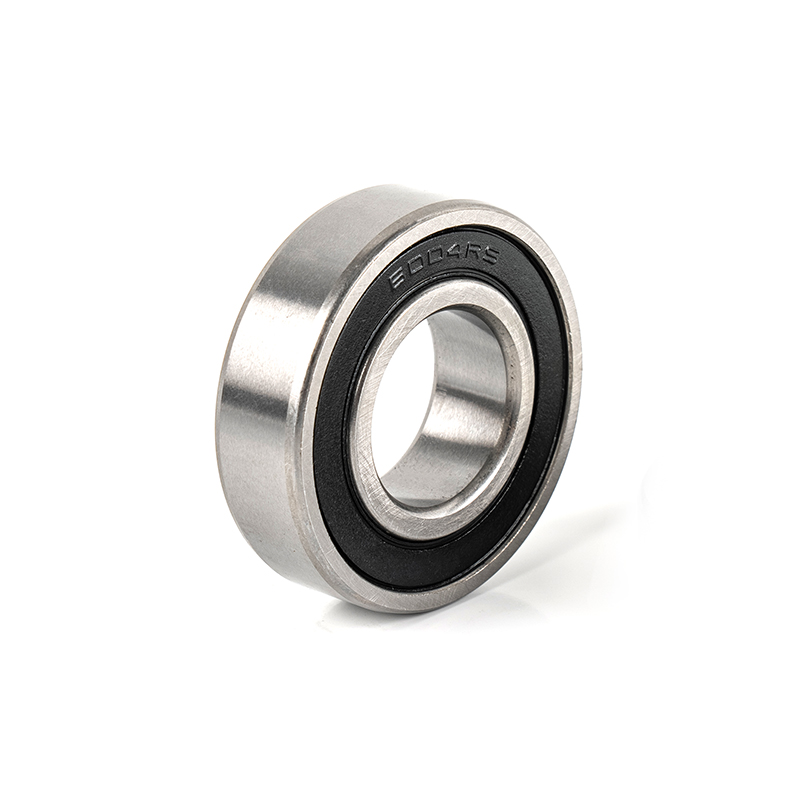

6004 20 42 12 7.22 4.46 0.068
60/22 22 44 12 9.38 5.02 0.074

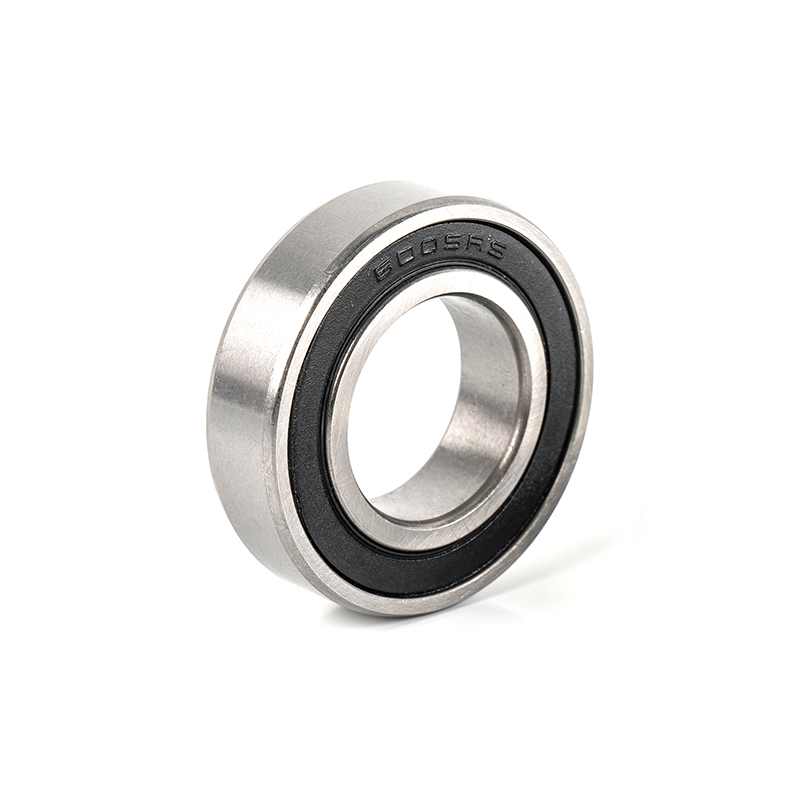

6005 25 47 12 10 5.85 0.08
60/28 28 52 12 10.05 5.92 0.098
6006 30 55 13 10.18 6.91 0.116
60/32 32 58 13 10.74 7.24 0.129

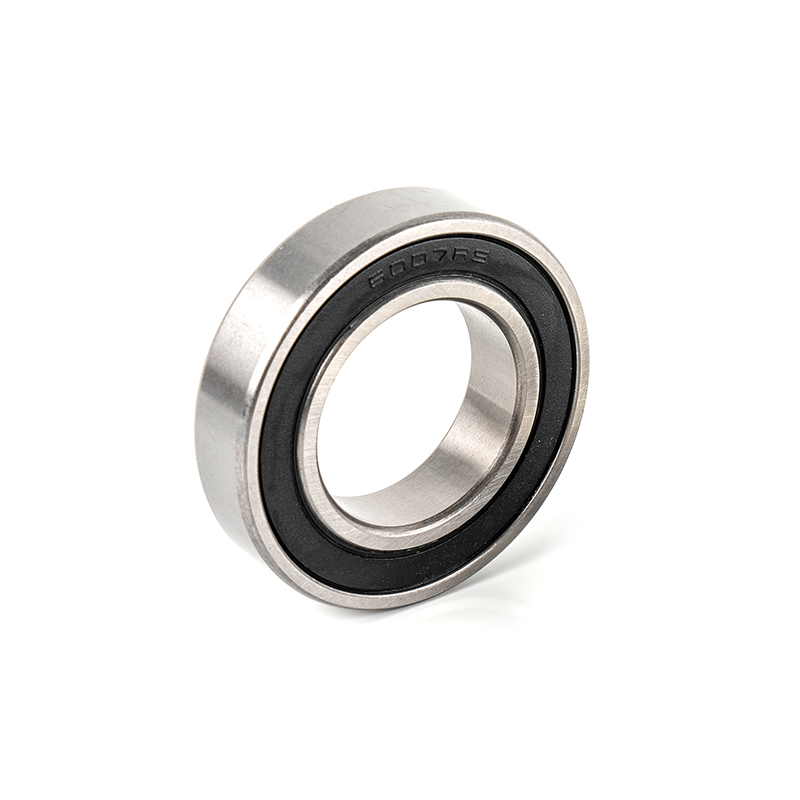

6007 35 62 14 12.47 8.66 0.155

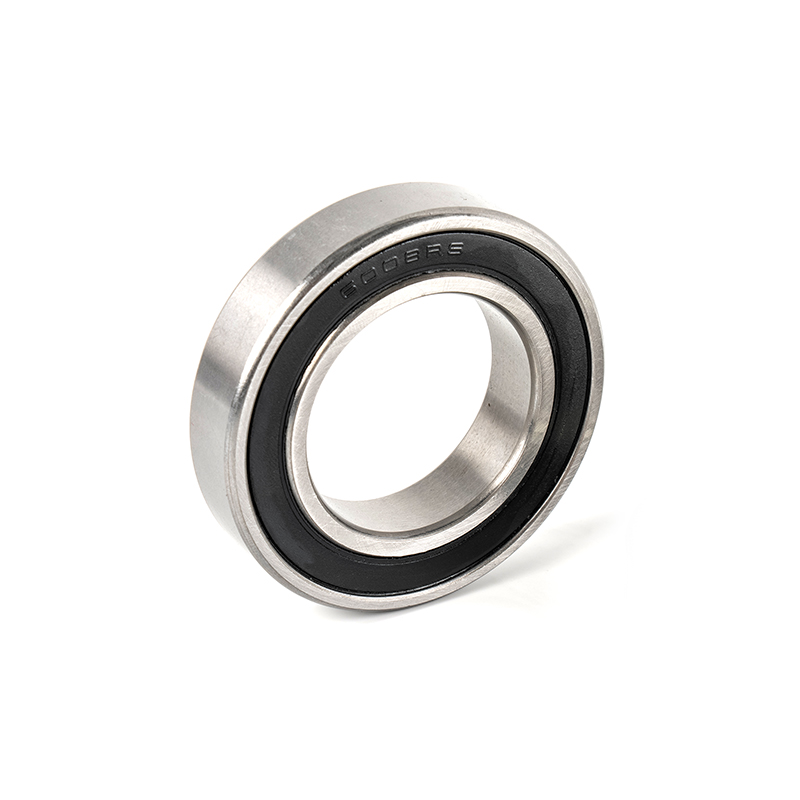

6008 40 68 15 13.1 9.45 0.185
6009 45 75 16 16.22 11.96 0.231

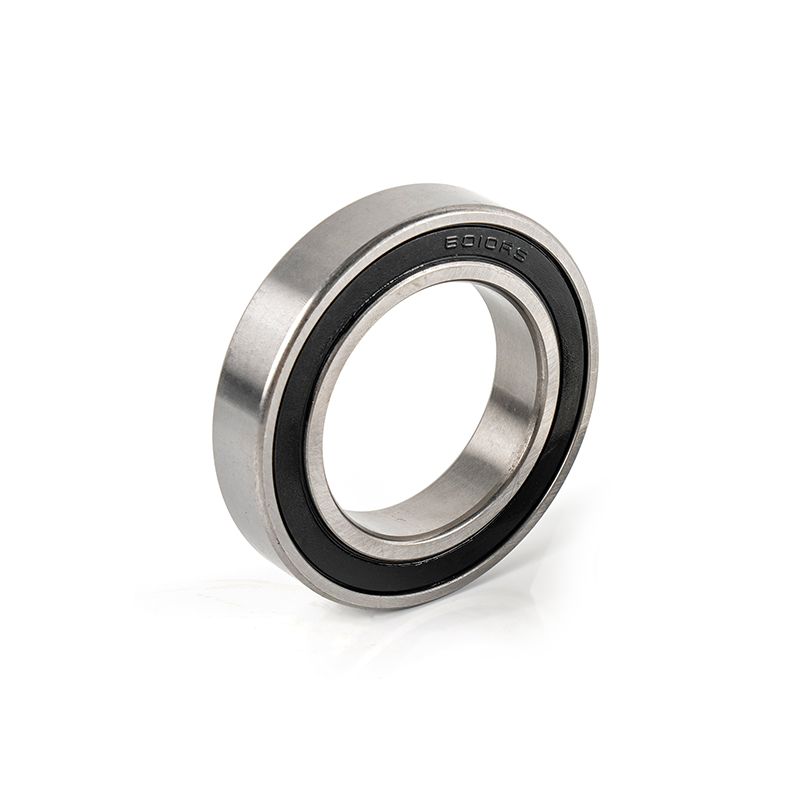

6010 50 80 16 16.94 12.95 0.25
6011 55 90 18 23.28 17.86 0.362
6012 60 95 18 24.35 19.35 0.385

Please fill in carefully, it will help us all!

We are a bearing manufacturer integrating the research, development, and sales of bearings. We stick to the principle of quality first, service first" for the management, Equipped with a modern fully automatic production line, and advanced detection instruments, and have established a professional product laboratory to ensure the performance of products in various fields.

As professional OEM/ODM Deep groove ball bearing 60 series manufacturers and Deep groove ball bearing 60 series factory, Our bearings are widely used in complete products in engineering machinery, agricultural, and packing industries, in addition to various applications at airports, in air-conditioning systems, conveying devices, ships, and so on. Especially in the field of RO pumps, The company has been working in professional research and development of water pump bearings for more than ten years since 2009. Over the past 10 years, we have continuously improved and designed special pump bearings for pumps according to all customer's requirements, which greatly improved the overall quality of the pumps and was well received by customers.

Cixi Bao Li Bearing Manufacturing Co., Ltd.

NEWS & EVENT

We Are a Bearing Manufacturer Integrating The Research, Development, And Sales of Bearings.

INDUSTRY KNOWLEDGE

What is the load capacity of a 60 series deep groove ball bearing?
The load capacity of a 60 series deep groove ball bearing can vary depending on various factors, including the specific model and manufacturer. To provide a comprehensive answer, let's discuss the load capacity of deep groove ball bearings in general and consider some factors that can affect their load capacity.
Deep groove ball bearings are designed to handle both radial and axial loads, making them versatile and widely used in various applications. They can accommodate heavy radial loads by distributing them over a larger surface area, enabling them to withstand high speeds and provide reliable performance.

Several factors influence the load capacity of a deep groove ball bearing:
1. Bearing Size: The size of the bearing directly affects its load carrying capacity. Larger bearings generally have a higher load capacity compared to smaller ones.
2. Material and Design: The material used for the bearing components, such as the inner and outer rings and the rolling elements, can impact the load capacity. Common materials include chrome steel and stainless steel. The bearing design, including the number and size of the balls, also affects the load capacity.
3. Clearance: The internal clearance of the bearing affects its load capacity. Clearance refers to the space between the rolling elements and the inner and outer rings. A larger internal clearance allows for higher load capacity but may negatively impact other factors like precision and noise.
4. Lubrication: Proper lubrication is essential for reducing friction and wear, enhancing the load capacity of the bearing. Insufficient lubrication or the use of improper lubricants can decrease the load carrying capacity.
5. Mounting and Alignment: Proper mounting and alignment of the bearing are crucial for optimizing its load capacity. Misalignment and improper installation can lead to premature failure and reduced load capacity.

How does the 60 series deep groove ball bearing handle shock and impact loads?
Deep groove ball bearings are primarily designed to handle radial loads, which are forces acting perpendicular to the shaft. They are not specifically designed to handle heavy shock or impact loads, which are sudden and transient forces acting in various directions. However, with proper selection and design considerations, deep groove ball bearings can still withstand moderate shock and impact loads.

One factor that affects the ability to handle shock and impact loads is the material used in the bearing components. High-quality bearing steel, such as chrome steel, is commonly used because of its high strength and good shock resistance. This ensures the bearing can withstand sudden loads without deformation or failure.
Another factor is the bearing's internal clearance. Deep groove ball bearings with larger internal clearances provide more space for expansion due to thermal effects or shock loads. However, excessive clearance may result in reduced contact between the balls and raceways, affecting the bearing's overall stiffness and load capacity. Therefore, it is essential to strike a balance between internal clearance and load-carrying capabilities.

The design of the bearing also plays a role in its ability to handle shock and impact loads. Deep groove ball bearings may have different cage designs, such as metal or plastic cages. Metal cages offer better resistance to impact loads due to their higher strength. Additionally, ball retainer designs, such as crown or ribbon-type cages, can help distribute the load evenly and prevent ball skewing, enhancing the bearing's ability to handle shock loads.
Furthermore, the load distribution across the bearing affects its performance under shock and impact loads. When subjected to sudden forces, the load may not be evenly distributed throughout the bearing. This non-uniform loading can lead to excessive stresses and potential failure. Proper alignment and mounting techniques can help ensure even load distribution, reducing the impact on the bearing.
